Cathode Interlayer Materials (CIMs), Materials, Organic Conductors
PDINO (CAS number 1558023-86-1), bearing amino N-oxide group on perylenediimide (PDI) with π-delocalized planar structures and high electron affinities, is widely used as cathode interlayer materials. While working great with Al as the cathode, PDINO also allows high work function metals (such as Au and Ag) to act as efficient cathodes.
With a measured conductivity of 7.6 × 10-5 S/cm, PDINO has four orders of magnitude higher than that of the well-known cathode interlayer PFN (6.9 × 10-9 S/cm). Organic photovoltaic cell with 17% efficiency was achieved with PDINO as the cathode interlayer material by employing PBDB-TF (PM6):BTP-4Cl-12 (Y7-BO) as the active layer.
Device structure: ITO/PEDOT:PSS/PBDB-TF (PM6):BTP-4Cl-12 (Y7-BO)/PDINO/Al [3]
Thickness (nm)
VOC (V)
JSC (mA cm-2)
FF (%)
PCE (%)
100
0.858
25.6
77.6
17.0
General Information
Full name
N,N'-Bis(N,N-dimethylpropan-1-amine oxide)perylene-3,4,9,10-tetracarboxylic diimide
Purity
98% (1H NMR)
Synonyms
3,3'-(1,3,8,10-Tetraoxoanthra[2,1,9-def:6,5,10-d'e'f']diisoquinoline-2,9(1H,3H,8H,10H)-diyl)bis(N,N-dimethylpropan-1-amine oxide)
Chemical formula
C34H32N4O6
Molecular weight
592.64 g/mol
CAS number
1558023-86-1
HOMO / LUMO
HOMO = -6.21 eV LUMO = -3.63 eV [1]
Melting point
103.4 °C (TGA, 5% weight loss)
Form
Reddish brown powder/crystals
Absorption
λmax 468 nm (film)
Solubility/processing solvents
Methanol, ethanol, trifluoroethanol
Classification / Family
Perylene diimide (PDI), Organic semiconducting materials, Organic Photovoltaics, OLED, Small molecule electrolyte
Chemical Structure

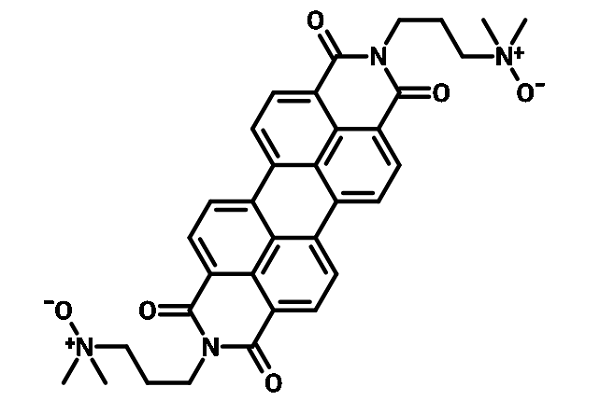

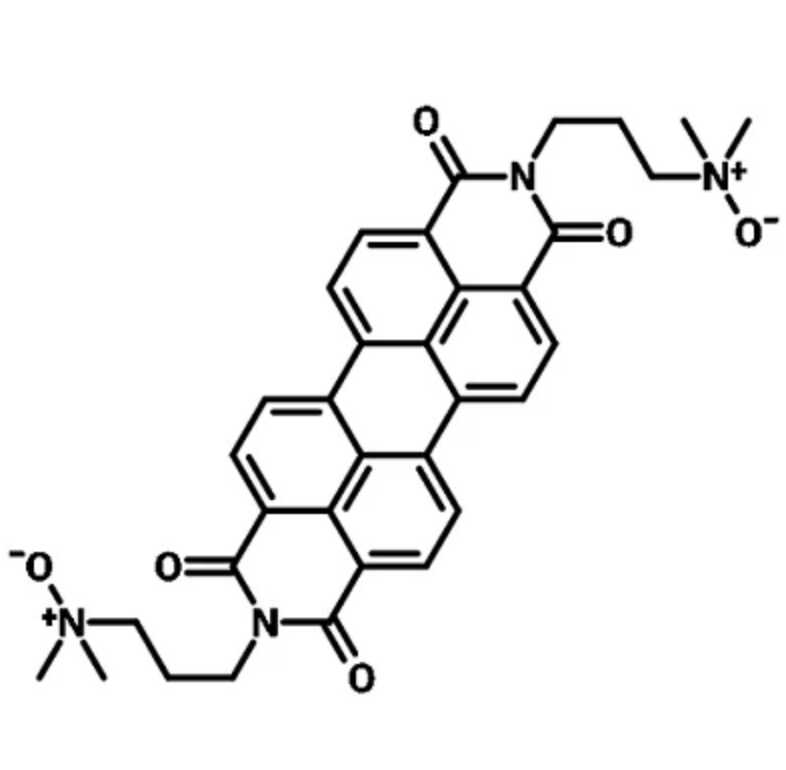

Chemical structure of PDINO, CAS 1558023-86-1
