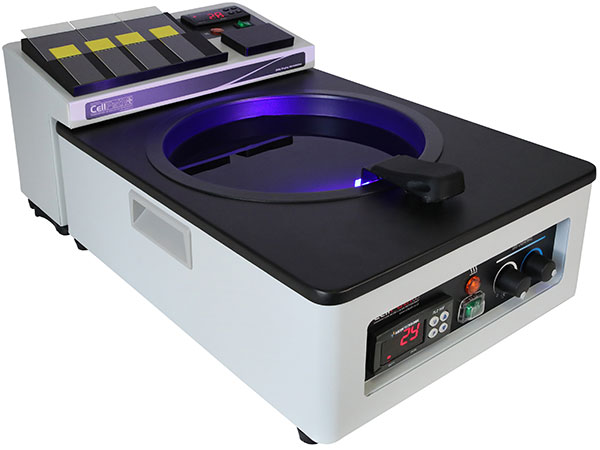

Round Digital LED Tissue Section Bath

The Digital LED Tissue Section Bath is designed specifically to enhance visualization of tissue sections and to reduce the risk associated with floating tissue debris. An innovative LED light array sits inside the bath, working in collaboration with a high-contrast background to provide optimal specimen viewing conditions.

The LED light array utilizes separate white and blue LED lights to illuminate the water surface. Both LED lights are dimmer controlled, allowing the user to vary the intensity of the backlighting to their preference for section viewing. The LED backlighting also aids detection of any tissue floaters, which may be left on the water surface, after cleaning section debris using a tissue between specimen cases.

Digital temperature control accurately maintains water at a set temperature, allowing tissue sections to be efficiently flattened prior to being picked up with a microscope slide. The bath has generous space for a user to rest their hands when floating sections and an extra deep tapered bowl which allows slides to be dipped at any angle, without touching the bottom of the bowl.

Enhanced safety features include recessed controls, an over-temperature thermal cut out and miniature circuit breaker.

Key Features:

• Temperature range of between 30°C and 65°C
• Selectable blue and white LED backlighting with dimmer control

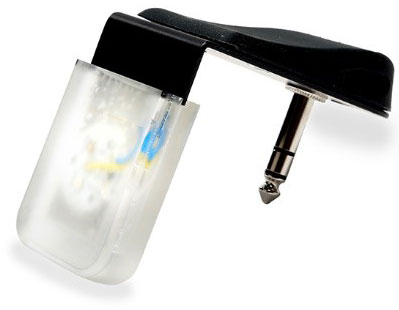

• Optional easily removable/replaceable LED light array
• Deep bowl with large diameter
• Convenient slide drying area at the rear of the bath
• Small footprint ensures minimal workbench space is taken up
• Ultra-fast heating system and reduced warmup time
• Anti-microbial finish to inhibit bacterial and viral growth
• Digital temperature control accurate to ±0.5°C at 45°C
• Miniature circuit breakers eliminating fuses
