| CAS Number | 2411720-50-6 |
|---|---|
| Full Name | 9′-(2,12-Di-tert-butyl-5,9-dioxa-13b-boranaphtho- [3,2,1-de]anthracen-7-yl)-9,9′′-diphenyl-9H,9′H,9′′H-3,3′:6′,3′′-tercarbazole |
| Chemical Formula | C74H56BN3O2 |
| Molecular weight | 1030.07 g/mol |
| Solubility | in THF, DCM and Toluene |
| Photoluminescence | 448 nm (in film) |
| HOMO/LUMO | HOMO = - 4.88 eV, LUMO = - 1.72 eV |
| Classification/Family | Carbazole derivatives, oxygen-bridged boron (DOBNA) derivatives, Deep blue emitter, MR-TADF Dopant |
| Purity | Sublimed ≥99% |
|---|---|
| Melting Point | Tg = 271 °C, Td = 517 °C |
| Appearance | Yellow powder/crystals |

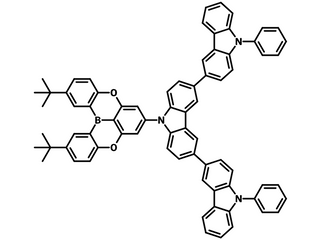

Chemical structure of TB-P3Cz, CAS: 2411720-50-6
| Device structure | ITO/PEDOT:PSS (40 nm)/PVK (20 nm)/TB-P3Cz/TPBi (40 nm)/LiF (1 nm)/Al (100 nm) [1] |
|---|---|
| Colour |
 Blue light emission at 448 nm
|
| Turn on Voltage (Von) | 3.05 V |
| CIE coordinates | (0.15, 0.08) |
| Max Current Efficiency | 4.59 cd/A |
| Max Power Efficiency | 4.12 lm/W |
| Max EQE | 6.13% |
