Copper PELCO^® FIB Lift-Out Grid TEM Grids

The typical thickness of the copper lift-out grids is 35µm +/-5µm. The Cu FIB lift-out grids also have a thinner ridge on the inside, where the lamellas can be attached and are protected when stored. Available with either one or two wider v-shaped posts or four narrow flat posts with identification number etch through. Use single or dual wider posts for attaching single lamellas or the four posts for attaching a larger number of lamellas. Size of wide post is 250 x 35 x 190µm (W x D x H), size of narrow post is 80 x 35 x 190µm (W x D x H). Sold in packs of 100. FIB grid with 2 wide posts available with thickness of 55µm ±5µm as well.

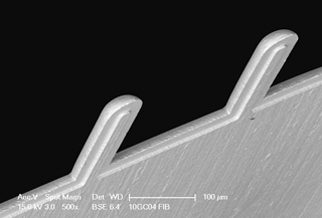

SEM image of copper FIB lift-out TEM grid narrow posts showing set-back and shape	SEM image of copper FIB lift-out TEM grid wide post showing set-back and shape

	Prod #DescriptionUnitPriceOrder / Quote10GC01PELCO® FIB Lift-Out TEM Grids, single, wide post, copper pkg/100
	Prod #DescriptionUnitPriceOrder / Quote10GC02PELCO® FIB Lift-Out TEM Grids, 2 wide posts, copperpkg/100$93.50Qty:  10GC02TPELCO® FIB Lift-Out TEM Grids, 2 wide posts, copper, 55µ thickness pkg/100
	Prod #DescriptionUnitPriceOrder / Quote10GC04PELCO® FIB Lift-Out TEM Grids, 4 narrow posts, copper pkg/100
